Hospital bed castors
ALC

ALC - 200

Swivel Castors with central,total lock and directional lock

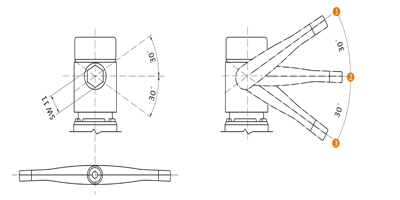

The mechanism of operation (total lock) 30 degree

1.Full locking of all four castors 2.changes of direction:free mobility of all castors.

Area of Application:

Care Beds
Hospital Beds
Stretcher

Material:

Cover: Polyamide
Wheel: PolyPropylene with TPE TREAD
Housing: Aluminum

Technical Data
Wheel Diameter 200 mm
Total width 74.6 mm
Width of wheel 35 mm
Offset 60 mm
Dynamic Loadcapacity 150 kg
Static Loadcapacity 300 kg
Temperature -10 °C ~ 40 °C
Stem

  • "Notice"
    The dimension is for reference,please contact us for more information.
  • Color option
    Follow by Pantone color code
